ZANSKAR HOTSPRING™
TANKLESS
WATER HEATER
5kw
WHY THE ZANSKAR 5.5KW TANKLESS WATER HEATER?
Sleek Digital Display
The appliance shows temperature settings, on the LED digital display and the direct temperature settings can be done easily with the touch screen facility
Sleek Digital Display
The appliance shows temperature settings,
on the LED digital display and the direct temperature
settings can be done easily with the touch screen facility
180 Installation
2 way easy installation – Up or Down 180 degrees is possible
180 Installation
2 way easy installation – Up or Down 180
degrees is possible
Under Sink Installation
Also ideal for powder rooms or dining areas
Under Sink Installation
Also ideal for powder rooms / dining areas and small showers in cities like Mumbai that have mild winters.
Nickel-Chromium Heating Elements for efficient heating
The appliance has a patented heating module system with electricity leakage protection, anti-scalding, overpressure, and overheats protection
Nickel-Chromium Heating Elements
for efficient heating
The appliance has a patented heating module
system with electricity leakage protection,
anti-scalding, overpressure, and
overheats protection
High Resistance
to Hard Water due to Patented Heating
Module in Stainless Steel
Auto Memory
Function
International Electrotechnical Commission
ISI Mark
CML-No 7500292413
Certified by Bureau of Indian Standard
European Certifications
How to Choose the Right Tankless Water Heater?
Select the ideal geyser capacity and wiring setup for your bathroom based on climate and shower usage.
Choose your geyser capacity based on shower size and winter temperature
| City Temp. | 5.5 kW | 7 kW | 9 kW | 12 kW | 18 kW | 24 kW |
|---|---|---|---|---|---|---|
| 5°–10°C | TAP | TAP | 4" | 6"–8" | 8"–10" | 12" |
| 10°–15°C | TAP | 4" | 6" | 8" | 10"–12" | 15"–18" |
| 15°–20°C | TAP | 4" | 6/8" | 10" | 12"–15" | 18" |
| Above 20°C | TAP/4" | 6" | 8" | 10"–12" | 12"–18" | 18"–24" |

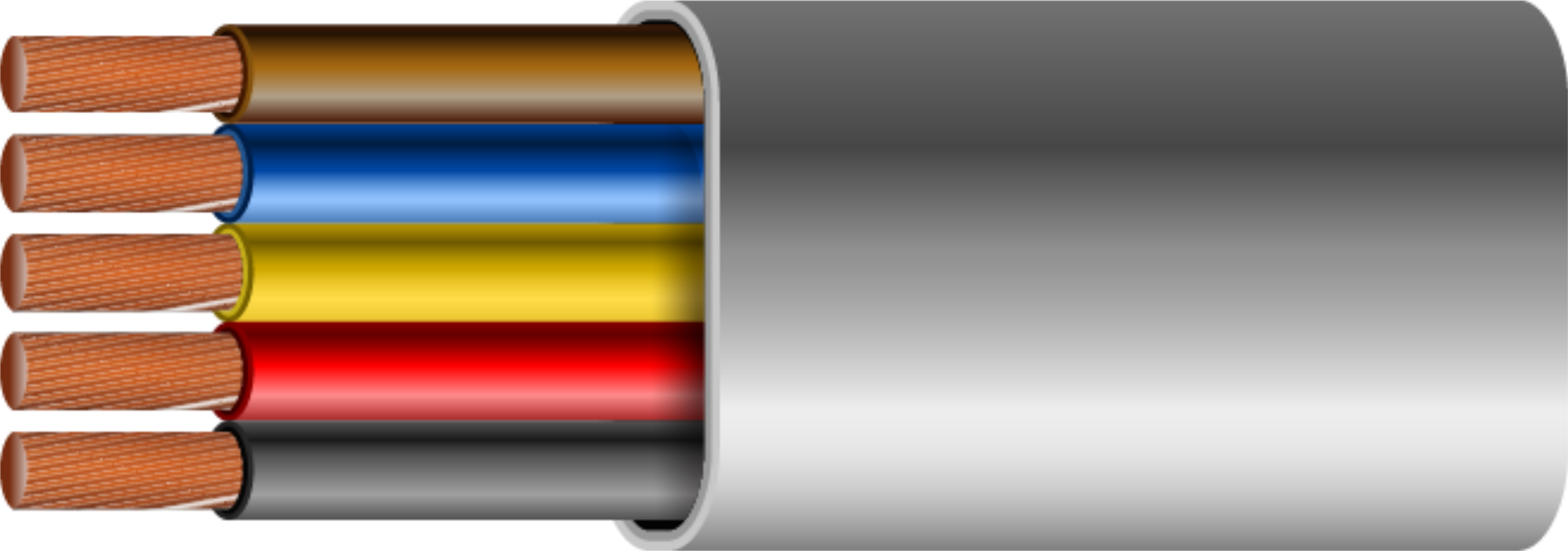

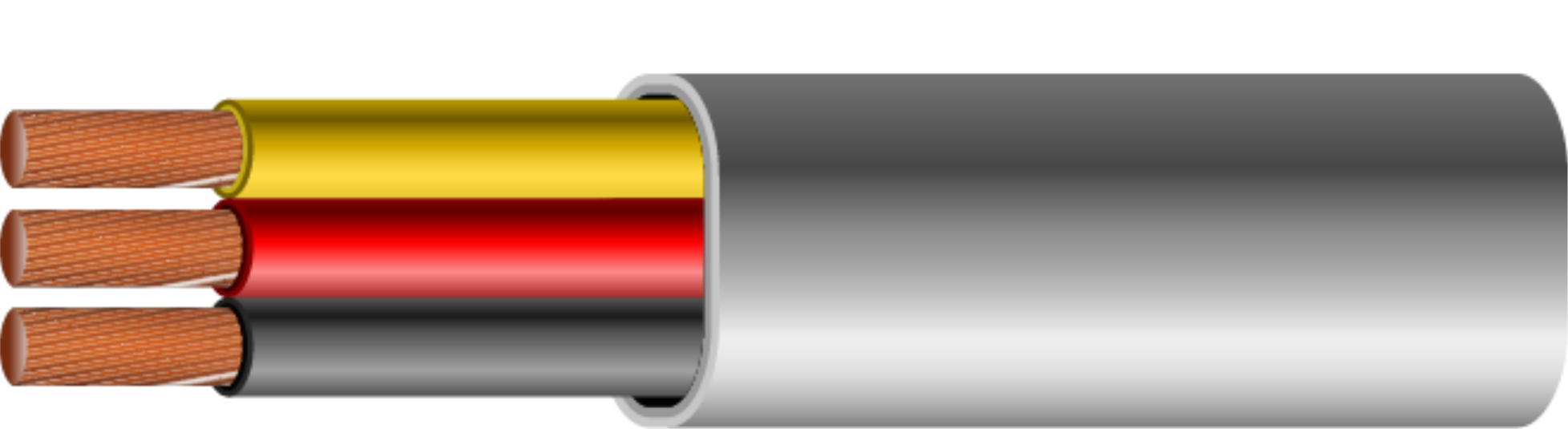

Verify your bathroom wiring before installation
High Resistance
to Hard Water due to Patented Heating Module in Stainless Steel
Auto Memory
Function
European Certifications
TECHNICAL SPECIFICATIONS
HSTK5 |
HSTB7 |
HSTB9 |
HSTB12 |
HSTB18 |
HSTB24 |
|
|---|---|---|---|---|---|---|
| Phase | 1 | 1 | 1 | 3 | 3 | 3 |
| Rated Output | 5.5 kW | 7 kW | 9 kW | 12 kW | 18 kW | 24 kW |
| Circuit breaker | 32A (2 Pole) | 32A | 40A | 20A | 32A | 40A |
| Wire | 3×2.5-4 sqmm | 3×4 sqmm | 3×6 mm² | 5×4-6 sqmm | 5×4-6 sqmm | 5×6 sqmm |
| IP Rating | IP 25 | IP 25 | IP 25 | IP 25 | IP 25 | IP 25 |
| Max Pressure | 6 Bar | 6 Bar | 6 Bar | 6 Bar | 6 Bar | 6 Bar |
| Inlet Size | G1/2″ | G1/2″ | G1/2″ | G1/2″ | G1/2″ | G1/2″ |
| Weight | 1.75 kg | 2.45 kg | 2.85 kg | 3.25 kg | 4.35 kg | 5.20 kg |
| Dimension HxWxD | 198x160x98 mm | 400x225x83 mm | 400x225x83 mm | 410x220x88 mm | 410x220x88 mm | 410x220x88 mm |
| Colour | White | Grey | Grey | White | White | White |
| Price | 8,990 | 12,990 | 21,990 | 29,990 | 39,990 | 44,990 |
